Pressure test reservation

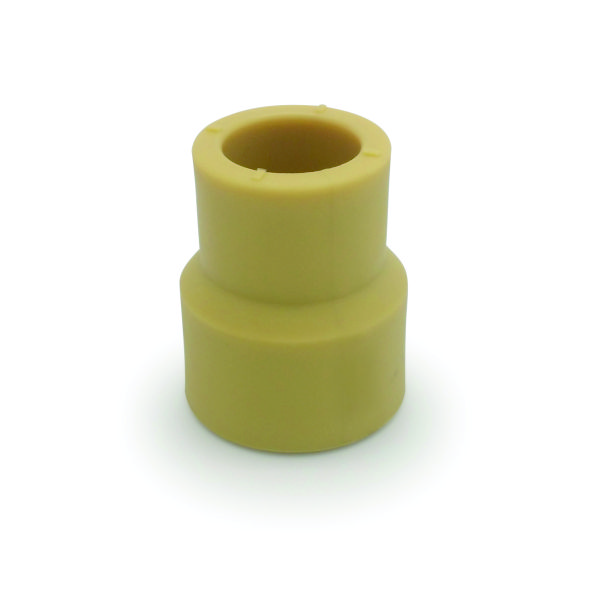

PP-R environmental protection/ Reducing direct connector

◎Cold and hot water pipes in residential buildings◎Pure water conveying pipe◎Hot water circulation and heating supply pipe◎Tap water pipe◎Aquaculture pipe◎Water treatment pipe◎Food, beverage, drug factory water conveying pipe◎Industrial cold and hot water conveying pipes◎Central air conditioner condensate water conveying pipe◎Compressed air pipe
Return

specifications	D	D1	d	d1	I	I1	H	A/box
Φ25×20	34.5	27.5	24	19	18.5	16.5	41	80×8
Φ32×20	43	27.5	31	19	21	16.5	47	70×8
Φ32×25	43	34.5	31	24	21	18.5	46	40×8
Φ40×20	53.4	27.2	39	19	22	16	52.5	240
Φ40×25	53.4	33.6	39	24	22	18	52	240
Φ40×32	53.4	43	39	31	22	20	50.8	192
Φ50×20	66.6	27.2	49	19	25	16	60.5	125
Φ50×25	66.6	33.6	49	24	25	18	60	125
Φ50×32	66.6	43	49	31	25	20	58.5	140
Φ50×40	66.6	53.4	49	39	25	22	57	90
Φ63×32	83.5	43	61.9	31	29	20	69	76
Φ63×40	83.5	53.4	61.9	39	29	22	67.5	76
Φ63×50	83.5	66.6	61.9	49	29	25	65.5	54
Φ75×63	95	80	73	62.5	33	29.5	73.5	36
Φ90×40	115	52	88	39	38	22	75	28
Φ90×50	115	64	88	50	38	25.5	78.5	28
Φ90×63	115	80	88	62.5	38	29.5	79	24
Φ90×75	115	95	88	73	38	33	83.5	19
Φ110×50	140	64	108	50	44	25.5	88.5	18
Φ110×63	140	80	108	62.5	44	29.5	89	15
Φ110×75	140	95	73	73	44	33	92.5	15
Φ110×90	140	115	108	88	44	38	98	10
